Description

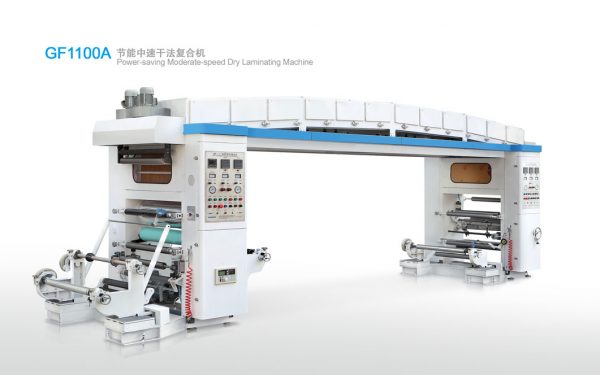

Power-Saving Moderate-Speed Dry Laminating Machine:
Technical Parameter:
| Model | GF1100A |
| Layers of complex | 2 (Layers) |
| Laminating width | 1100mm |
| Loading material’s diameter | 600mm |
| Adjustable range of laminating linear speed | 50-80m/min |
| Max. Adjustable temperature of dry oven | 80°C |
| Max. Adjustable temperature of heat beat | 70°C – 90°C |
| Tension ratio | 1/1000 |
| Total Power | 60kw |
| Weigh | 5500kg |
| Overall Dimension (L x W x H) | 7500 x 2260 x 2550mm |
