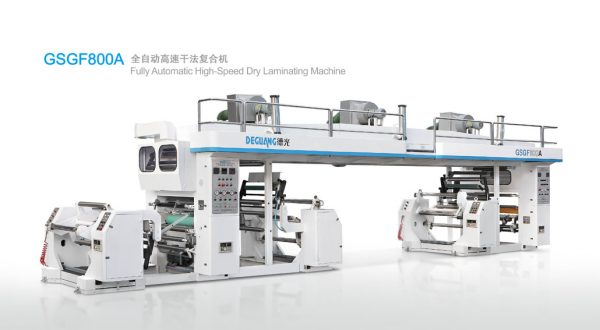

GSGF800A
Fully Automatic High-Speed Dry Lamination Machine
Enquiry about GSGF800A
- Description
Description
Fully Automatic High-Speed Dry Lamination Machine
Technical Parameter:
| Model | GSGF800A |
| Layers of complex | 2 (Layers) |
| Laminating width | 800mm |
| Loading material’s diameter | 600mm |
| Adjustable range of laminating linear speed | 50-120m/min |
| Max. Adjustable temperature of dry oven | 80°C |
| Max. Adjustable temperature of heat beat | 70°C – 90°C |
| Tension ratio | 1/1000 |
| Total Power | 52kw |
| Weigh | 8500kg |
| Overall Dimension (L x W x H) | 11500 x 2500 x 3200mm |
