ZMC-1050-S2 (DHE)

This bag making machine is suitable for side sealing bag from tube film or sheet folded film .according to set the number of each volume, auto stop and running after given pause time, the machine operation is very easy .customer can improve production efficiency, and it is a good choice for reducing the labor cost.

  • Description

Description

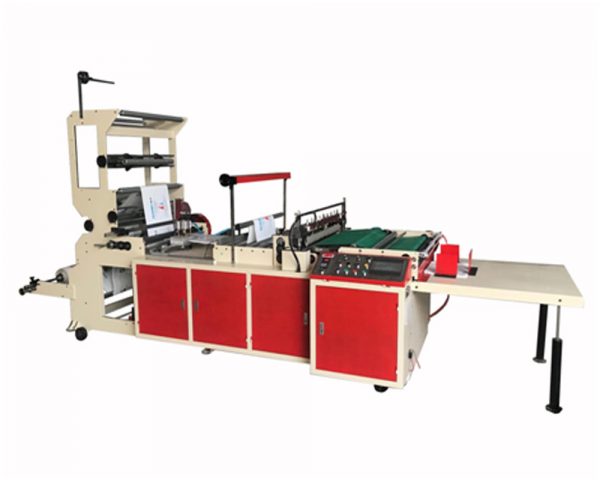

Side Seal Machine Model # ZMC-1050-S2 (DHE)

Usage and features:
This bag making machine is suitable for side sealing bag from tube film or sheet folded film .according to set the number of each volume, auto stop and running after given pause time, the machine operation is very easy .customer can improve production efficiency, and it is a good choice for reducing the labor cost.

Standard Accessories
Side center sleeter (2) Out lip flap 3″ with Tape (3) Double in side flap 3″ (4) Bottom gassed 3″ (5) Center cutter (6) Single sealing Dai LDPE (7) Single film stand with Manual Shaft 32mm (8) 1.0kw Servo Motor (9) Sick color sensor (China).

Optional Attachment
DIE CUT 20 X 80 mm
Hole punch 6mm x 75mm depth
EPC Trolley ( GK-71 & Synchronies Motor )

Main Technical Parameters:

Model                                                                  ZMC-1050-S2

Producing length                                              100-900mm

Producing width                                               300-1000.mm

Max. Producing speed                                     50p/min or 180p/min

Total power                                                        5.5Kw

Film of Thickness                                             0.03-0.08mm

Nature of film                                                    HDPE, LDPE, CPP, BOPP, PVC,

Max. Unwinding dia                                         600mm

Weight                                                                 800Kgs

Overall size L x W x H                                      427 x 177 x 147cm
