Description

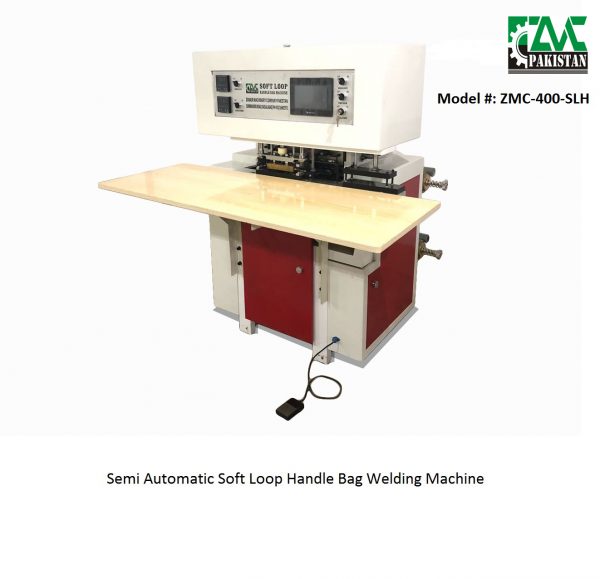

SEMI AUTOMATIC SOFT LOOP HANDLE BAG WELDING MACHINE
| Usage and features: |

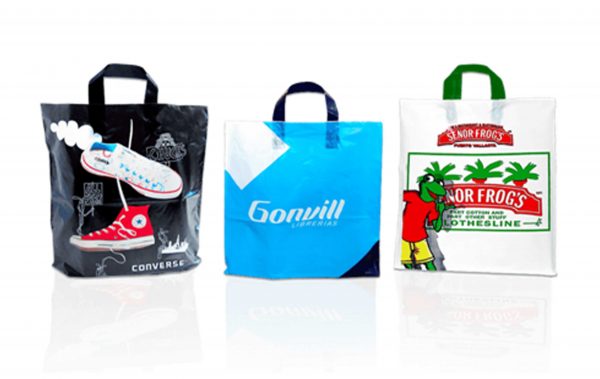

| There is a shelf for affiliated material behind this machine. The width of the affiliated materials identical to the loop length, The affiliated material is cut into narrow trips, and fed into the top fold, The flexible handle film feeding system is feeding by motor, The role of film is fed, cut and welded automatically and is precisely positioned to the center of the carry bag. |
| Standard Accessories: |
| Stepping Motor ( SOYO) |
Stepping Motor (M335) |
| PLC Control |
Vacuum Pump |
| Cutting Knife ( A&B ) 400mm |
Foot Treadle Switch |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Main Technical Parameters: |
| Model |
ZMC-400-SLH |
| Bag Width |
250-600mm |
| Max. Film width |
400mm |
| Max. Welding Speed |
30pcs/min |
| Power Required |
AC – 3 Phase |
| Film of Thickness |
0.05-0.50mm |
| Weight |
450Kgs |
| Overall size L x W x H (cm) |
165×156×124 cm |
| Main Allocation: |
| Item |
Brand |
Details |
Remark |
| Stepping Motor |
CHINA |
M335 |
2sets |
| Stepping Motor |
SOYO |
6 N.m, 3 A |
1set |
| HMI |
CHINA |
TK6071iQ |
1pc |
| PLC |
ZHONGXIN |
|
1pc |
| Power Supply |
CHINA |
DC-24V |
1pc |
| Selector Switch |
CHINA |
|
5pcs |
| Vacuum Pump |
|
|
1set |
| Tool Box |
|
|
1set |
| Temperature Controller |
|
|
2pc |
| Cutting knife |
|
400mm |
1 set |
| Foot Treadle Switch |
|
|
1pc |
| Solid Valve |
|
|
5pcs |
| Air Unit |
|
FRL-2000 |
1 set |
