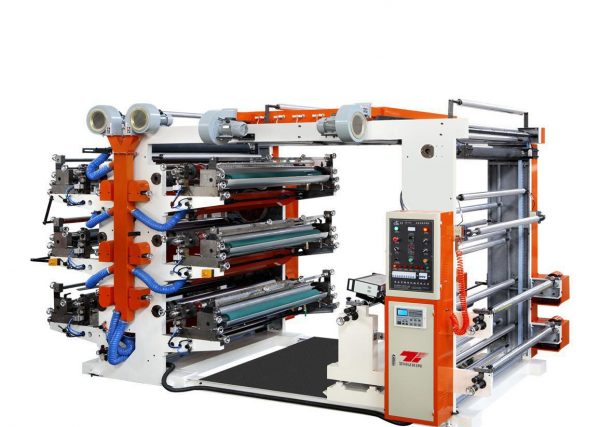

ZMC-CHSJ-FP6

Application: Introduce sensitization resin as a flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc

  • Description

Description

Application
Application: Introduce sensitization resin as a flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Product Features:
1. Easy operation, flexible starting, and accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the
the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after
lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically
break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack
so as to make it easy to operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for
rewinding tension control.
10. With double unwinding & rewinding shaft

Type  ZMC-CHSJ-FP6-6600 ZMC-CHSJ-FP6-6800 ZMC-CHSJ-FP6-61000
 Max. Effective  Printing  Width 560mm  760mm
Max. Web  Width 600mm 800mm 1000mm
 Max. Printing  Speed 50m/min 50m/min 50m/min
Max. Printing  Speed 60m/min 60m/min 60m/min
Max. Diameter  of  Roll  Material  450mm 450mm 450mm
Internal  Diameter  of  Roll  Core 76mm 76mm 76mm
 Range  of  Repeat  Printing  Length 191-914mm  191-914mm  191-914mm
Accuracy  of  Registration 0.5mm 0.5mm 0.5mm
 Plate  Thickness (Both side  adhesive  tape  included) 2.38mm 2.38mm 2.38mm
Heating  Power 4kw 6kw 8kw
Total  Power 8kw  10kw  12kw
Weight  of  Machine 3000kg 3500kg 4000kg
Overall  Dimension  4500x1700x2950mm 4500x1900x2950mm 4500x2100x2950mm
