ZMC-CHSJ-MH2P

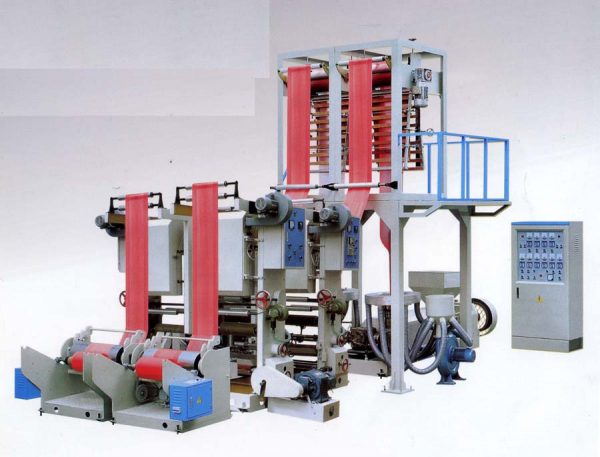

ZMC-CHSJ-MH2P Double head blown machine with an online printer
Enquiry about ZMC-CHSJ-MH2P
- Description
Description
ZMC-CHSJ-MH2P Double head blown machine with an online printer
| Model
|
□L-65/700 □L-70/900 □L-75/1100 | |
| Film width | T-shirt bag | □200-400mm □250-600mm □300-1000mm |
| Flat bag | □200-600mm □250-800mm □500-1100mm | |
| Film thickness | 0.006-0.04mm | |
| max output | □55kg/h □75kg/h □90kg/h According to different width, thickness of film, die size and raw material characteristics to change |
|
| Raw material | LDPE/LLDPE/HDPE | |
| Diameter of screw | □Φ65,30/1 □Φ70,30/1 □Φ75,30/1
SACM 645 ,bimetallic ，five years guarantee |
|
| Main motor | □11kw □15kw □30kw □37kw 100% Original three-phase variable frequency motor Equipped with inverter control |
|
| Take up roller(mm) | □700mm □900mm □1100mm | |
| Weight | □3000kg □3500kg □4200kg | |
| Machine size | □5.8*3.1*4.3 □6.5*3.5*4.3 □6.8*4*5.2 | |
Optional device:
Automatic Hopper Loader
Film Surface Treater
Rotary Die
Oscillating Take Up Unit
Two Stations Surface Winder
Chiller
Heat Slitting Device
Gravimetric Dosing Unit
IBC (Internal Bubble Cooling Computer Control System)
EPC (Edge Position Control)
Electronic Tension Control
Manual mechanics screen changer
Edge material recycling machine
