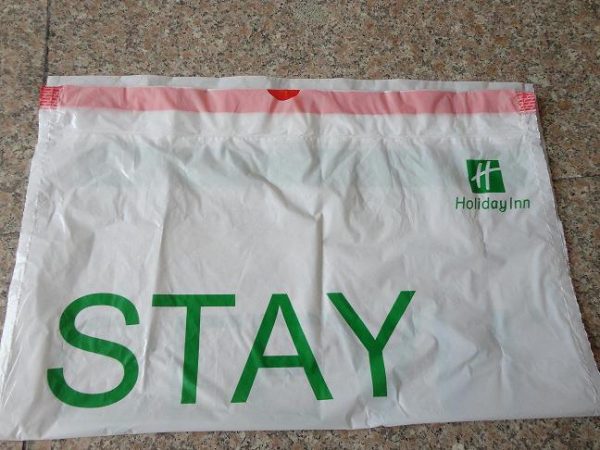

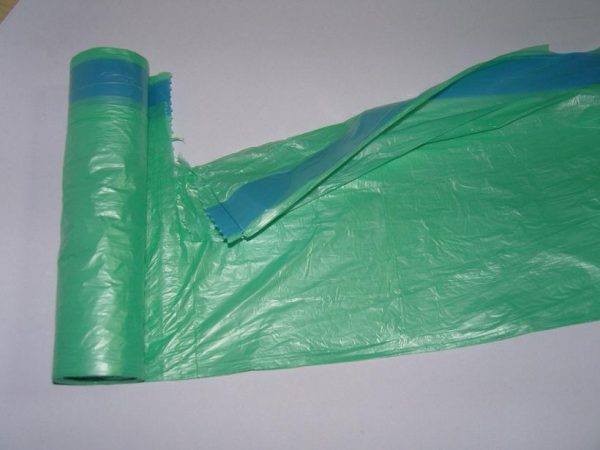

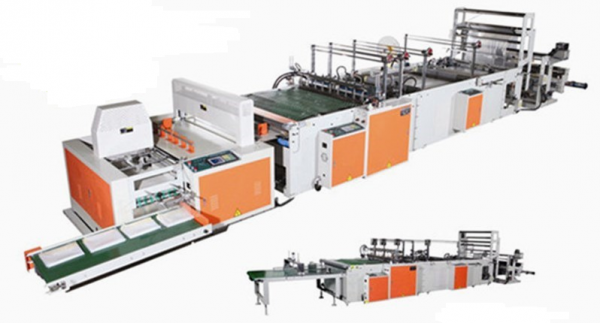

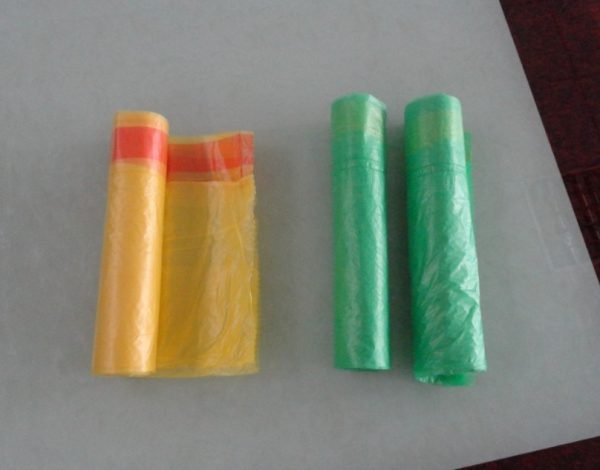

This machine is specially designed for the spot breaks the flat bag and rolling vest bag dual-purpose machine. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.

  • Description


This machine is specially designed for the spot breaks the flat bag and rolling vest bag dual-purpose machine. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.

型号Model ZMC-CHZD-J
600 700 800
制袋宽度Width of bag-making(mm) 400mm 600mm 700mm
制袋长度Length of bag-making(mm) 1200mm 1200mm 1200mm
制袋厚度Thickness of bag-making(mm) 0.008-0.05mm 0.008-0.05mm 0.01-0.05mm
制袋速度Speed of bag-making(pc/min) 40-120pcs/min 40-120pcs/min 40-120pcs/min
主机功率Motor power(kw) 1.1 1.5 1.5
加热功率Electric heating power(kw) 1.2 2 2.2
总功率Total power(kw) 4.2 5 6.2
机器重量 Machine weight(kg) 800 900 1000
外形尺寸 3300×1100×1500 3300×1300×1500 3300×1400×1500
