ZMC-FC-CH

fly-cutter bottom sealing bag making machine Heavy duty bottom sealing bag making machine, which is specializing in producing tension less bag

  • Description

Description

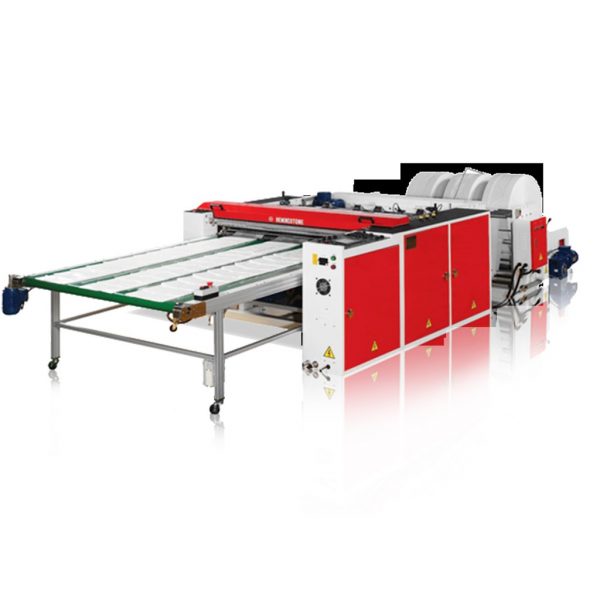

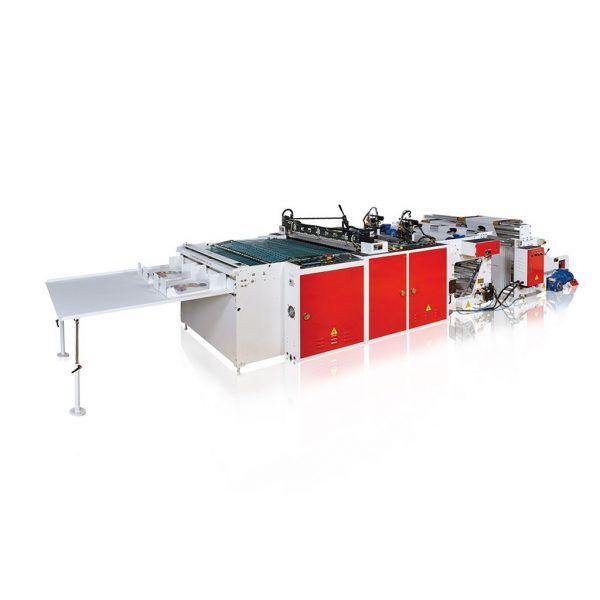

ZMC-FC-CH fly-cutter bottom sealing bag making machine Heavy duty bottom sealing bag making machine, which is specializing in producing tension less bag

Feature:

  1. Newly design flying knife cutting system, easy to exchange the blade
  2. Double electric hot heating sealing design, sealing firmly
  3. The entire stack, the entire output
  4. Can make the multi-lane non-print bag.

Optional Device:

Hanger hole puncher device

V type sealing device

Surface friction unwinding device

Double servo feeding for producing double lane print bag

Technical Parameter:

Type CW-1000FB   CW-1200FB CW-1400FB CW-1600FB
Bag making length 200-3000mm 200-3000mm 200-3000mm 200-3000mm
Bag making width 900mm 1100mm 1300mm 1500mm
Mechanical  speed 80pcs/min 80pcs/min 80pcs/min 70pcs/min
Film thickness (mm) 0.04×2-0.25×2 0.04×2-0.25×2 0.04×2-0.25×2  0.04×2-0.25×2
Total power 7.5KW  8KW 9KW 10KW
Machine weight 1800kg 2000kg  2100kg 2200kg
Machine dimension 6000X1800X1300mm 6000X2000X1300mm 6000X2200X1300mm 6000X2400X1300mm
Air compressor  6HP  6HP  6HP  6HP

* The specification is subject to be changed for improvement without notice.
