ZMC-SHTR-CH

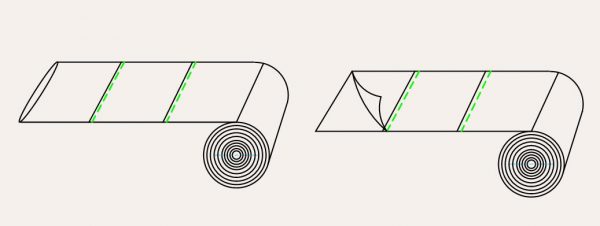

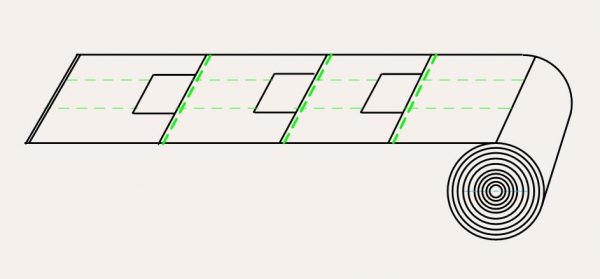

This machine is specially designed for the spot breaks the flat bag and rolling vest bag dual-purpose machine. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.

  • Description

Description

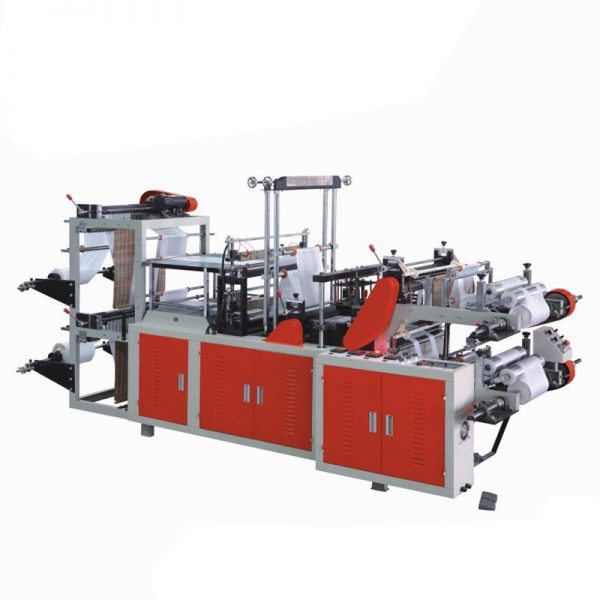

Semi-automatic rolling flat bag making machine

This machine is specially designed for the spot breaks the flat bag and rolling vest bag dual-purpose machine. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.

Model ZMC-SFR-CH
600 700 800
Width of bag-making(mm) 400mm 600mm 700mm
Length of bag-making(mm) 1200mm 1200mm 1200mm
Thickness of bag-making(mm) 0.008-0.05mm 0.008-0.05mm 0.01-0.05mm
Speed of bag-makiing(pc/min) 40-120pcs/min 40-120pcs/min 40-120pcs/min
Motor power(kw) 1.1 1.5 1.5
Electric heating power(kw) 1.2 2 2.2
Total power(kw) 4.2 5 6.2
 Machine weight(kg) 800 900 1000
Overall Dimension 3300×1100×1500 3300×1300×1500 3300×1400×1500
