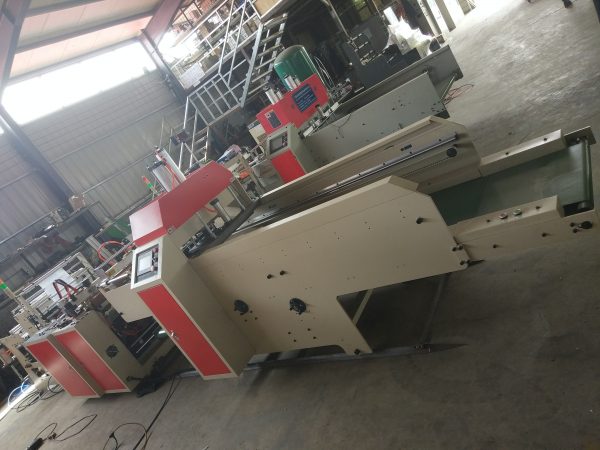

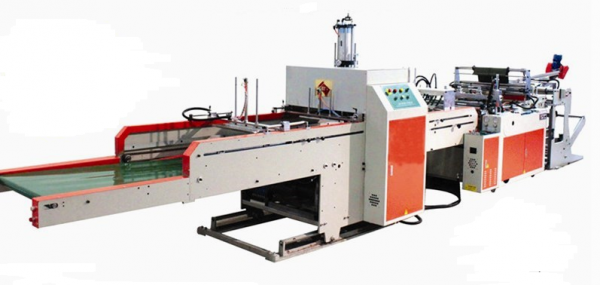

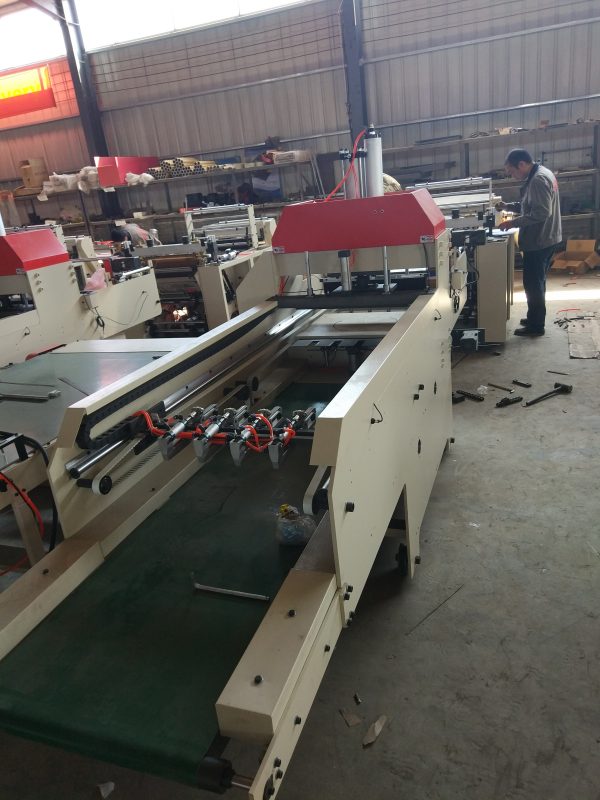

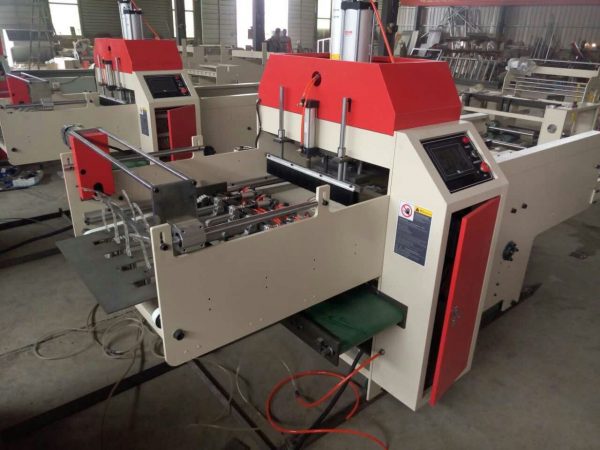

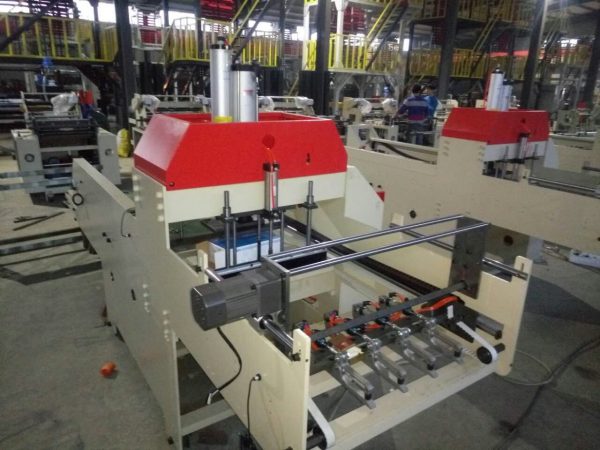

Full Automatic T-shirt Bag making machine Single

  • Description


Full Automatic T-shirt Bag making machine Single


  • Computer control over the entire process
  • From film roll to the final bag, one process flow
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Component self-testing function available
  • Automatic film feeding, coordination free from tension adjustment
  • Automatically stop when running out of the film
  • Automatically stop when film feeding blocks or bags jam
  • Automatically stop when color scanning misses
  • High production efficiency to save manpower and time


Model ZMC-ST-1/600-CH ZMC-ST-1/950-CH
Max. Width 200-500mm 300-800mm
Max. Length 300-800mm 600-1200mm
Bag-making Thickness 0.01-0.05mm 0.01-0.05mm
Bag-making Speed 300pcs/min 300pcs/min
Air Pressure 6HP 8HP
Main Power 7.5kw 9.5kw
Weight 1500kg 2000kg
Overall Dimension 7000×1500×1800mm 7000×1800×1800mm

* The specification is subject to be changed for an improvement without notice.
