ZMC-ST-C2-CH

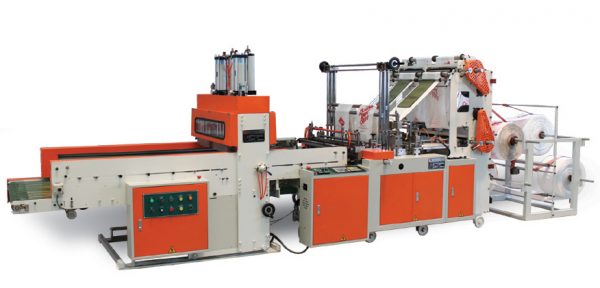

Full Automatic T-shirt Bag making machine Cold cutting
Performance characteristics: CH-ST C2 series heat sealing cold cutting bag making machine is composed of light, machine, electricity, imported frequency integration. Using foreign advanced bag making machine technology principle of a new generation of computer control heat sealing cold cutting bag making machine, and one size fits all four blank bag.
Enquiry about ZMC-ST-C2-CH
- Description
Description
Full Automatic T-shirt Bag making machine Cold cutting

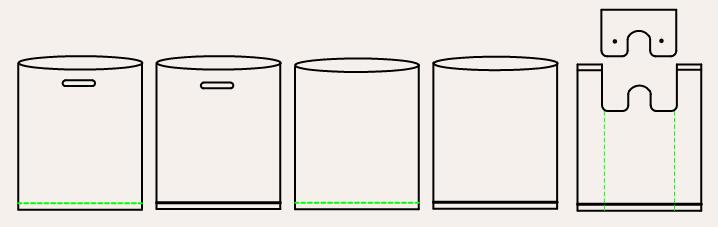

Performance characteristics: CH-ST C2 series heat sealing cold cutting bag making machine is composed of light, machine, electricity, imported frequency integration. Using foreign advanced bag making machine technology principle of a new generation of computer control heat sealing cold cutting bag making machine, and one size fits all four blank bag.
This machine is equipped with the servo drive, servo motor control main motor, stable operation, and high precision bag. With overload, over voltage, over current and other automatic protection function, automatic counting device can be arbitrarily set the number of batches, the number of sheets, you make a flat pocket and vest bag of the ideal equipment.
SPECIFICATIONS
| Model | ZMC-ST-C-CH | |||
| 300 | 400 | 500 | 600 | |
| Max Sealing and Cutting Width | 60-250mm | 100-350mm | 100-450mm | 100-500mm |
| Max Sealing and Cutting Length | 100-650mm | 300-650mm | 300-650mm | 300-950mm |
| Sealing and Cutting Thickness | 0.005-0.04mm | 0.005-0.04mm | 0.005-0.04mm | 0.005-0.04mm |
| Bag-Making Speed (pcs/min) | (50-230)×4/min | (50-230)×4/min | (50-230)×4/min | (50-230)×4/min |
| Air pressure | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² |
| Motor power | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
| Machine weight | ≈1400kg | ≈1500kg | ≈1700kg | ≈2400kg |
| Overall dimension(mm) | 6800×1500×1800 | 7000×1700×1800 | 7000×1800×1800 | 7000×2000×1800 |
* The specification is subject to be changed for an improvement without notice.
