ZMC-SZ-CH

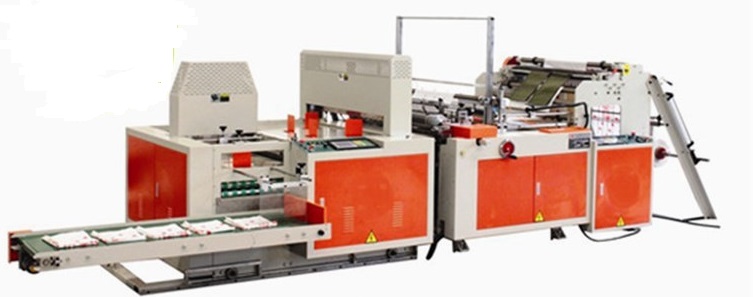

This machine is suitable for processing of tubular HDPE, LDPE and so on color or color flat pockets, folded into the bag size in general. The machine Uses stepper motor (or servo motor), Taiwan original controller, program stability, operation more convenient.
Enquiry about ZMC-SZ-CH
- Description
Description

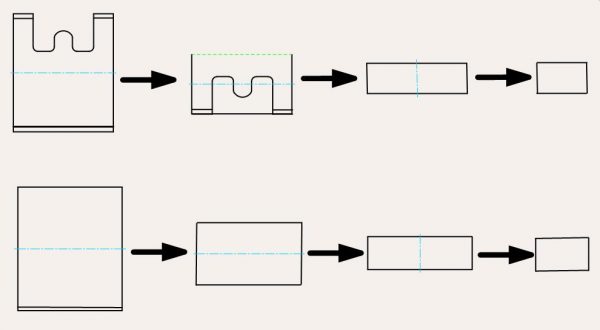

This machine is suitable for processing of tubular HDPE, LDPE and so on color or color flat pockets, folded into the bag size in general. The machine Uses stepper motor (or servo motor), Taiwan original controller, program stability, operation more convenient. Folding bag highly accurate does not need manual sorting, precise control into the material, and no error in the cutting. The flat bag can be folded into thirty percent (big bag smaller bags).
Absorbing foreign models advantages of this model, to provide cold cutting into folding bag making step process, easy operation, good performance. Is a leading domestic product.
| 机型 model | ZMC-CHZD-SZ800 | ZMC-CHZD-SZ900 | ZMC-CHZD-SZ1000 |
| 制袋宽度 bag width | ≤700mm | ≤800mm | ≤900mm |
| 制袋长度 bag length | 650-1000mm | 650-1000mm | 650-1000mm |
| 薄膜厚度（单层）(mm) thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| 制袋速度（只／分）speed | 40-60pcs/min | 40-60pcs/min | 40-60pcs/min |
| 电源 power | 220V50HZ | 220V50HZ | 220V50HZ |
| 主电机功率（KW）motor | 3.8kw | 3.8kw | 4.2kw |
| 主电热功率（KW） | 2kw | 2kw | 2.2kw |
| 机器外形尺寸（长*宽*高）size | 4200X1500X1600mm | 4200X1500X1600mm | 4200X1600X1600mm |
| 机器重量（Kg）weight | 1900kg | 1900kg | 2100kg |
PARAMETER FEATURES
| Name | Origin | Model |
| feeding motor | TAIWAN | 0.75KW |
| servo motor | TAIWAN | 4KW |
| PLC computer | TAIWAN | DELTA |
| PLC computer on punch | TAIWAN | DELTA |
| photocell | GERMANY | SICK |
| frequency inventor | TAIWAN | DELTA |
| electromagnetic valve | TAIWAN | MINDMAN |
| solid relay | TAIWAN | FOTEK |
| temperature controller | TAIWAN | FOTEK/OMRON |
| electromagnetic valve on punch | TAIWAN | MINDMAN |
| cylinder | TAIWAN | MARTO |
| pressure cylinder | TAIWAN | MARTO |
| thickness of machine frame | CHINA | 12mm |
| cutting knife | SK-9 | 1.5mm |
| Machine frame | 12mm plate |
