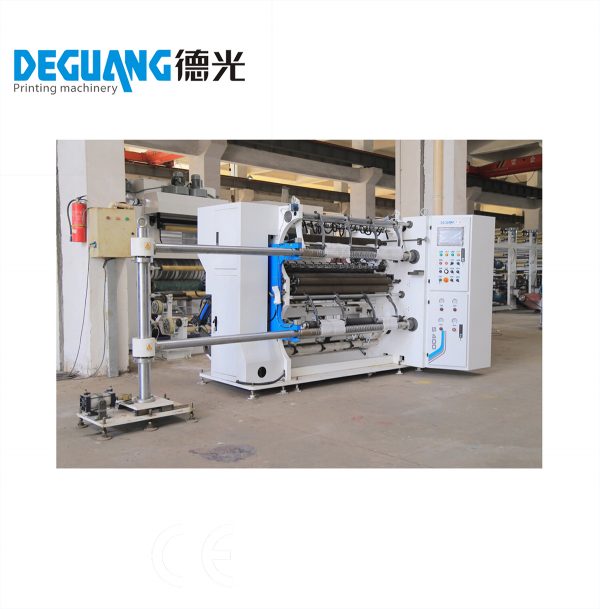

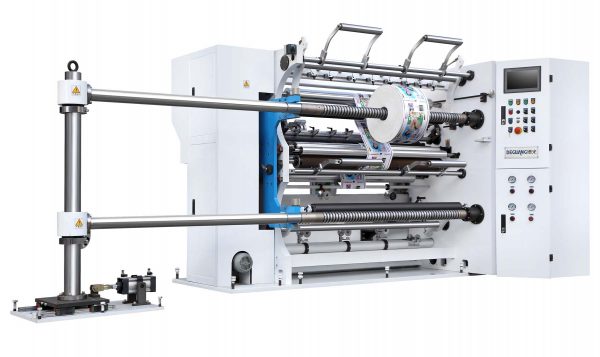

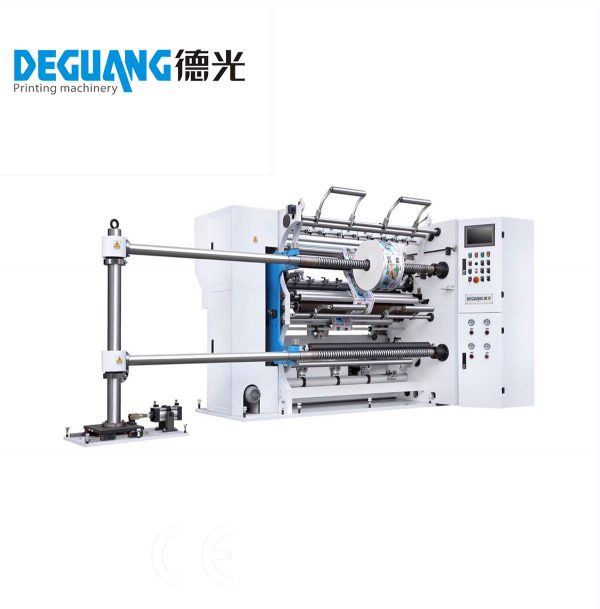

Automatic High-Speed Slitting Machine
Features:
- Compact structure, easy operation.

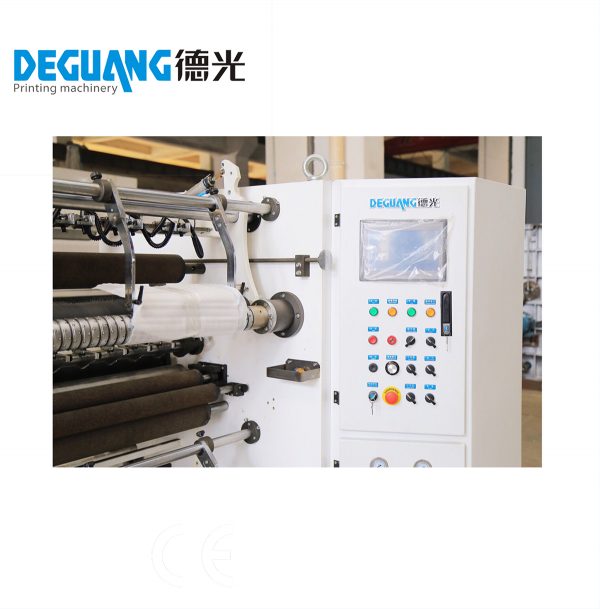

- Frequency motor driving system, PLC control.
- Subsection tension control.
- Hydraulic automatic loading.
- Rewinding platform
- Laser paper core positioning.

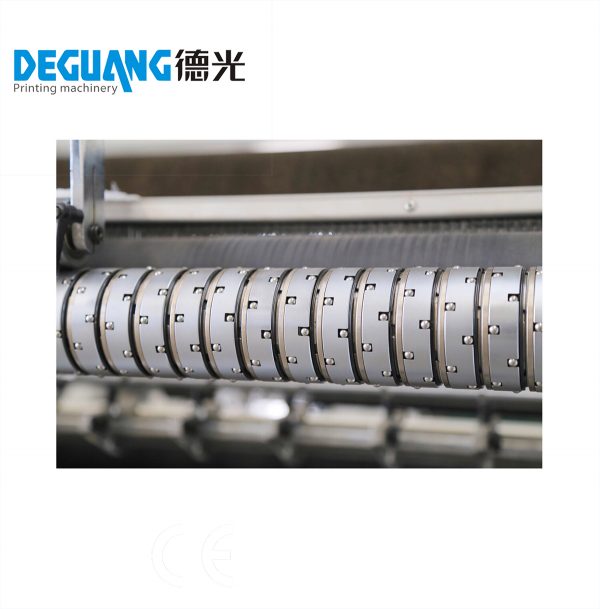

- Multi slitting type.

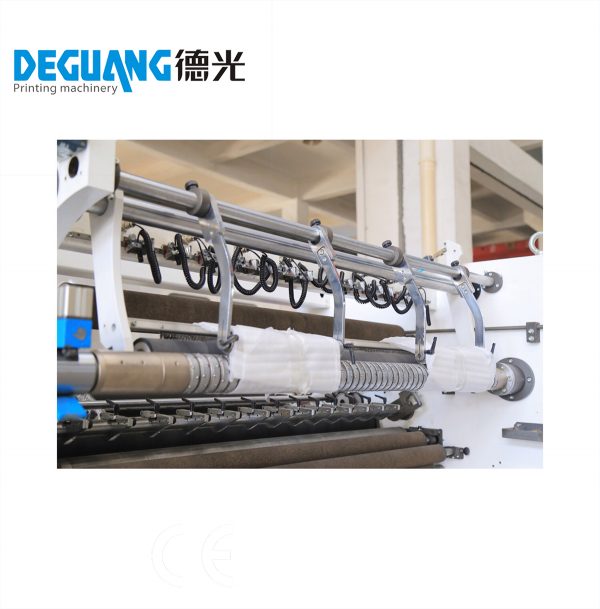

- Rewinding differential shaft.
Technical Parameter:
| Model | GSFQ1300B |
| Max mechanical speed | 450m/min |
| Max slitting speed | 400m/min |
| Max roll width | 1350mm |
| Min slitting width | 30mm |
| Max unwind dia | 800mm |
| Max rewind dia | 600mm |
| Suitable material | 10-200um flexible packaging material (film and paper) |
| Power | 11kw |
| Overall Dimension (L x W x H) | 4200 x 2820 x 1800mm |
| Weight | 4500kg |
