GSGF1100.1200A

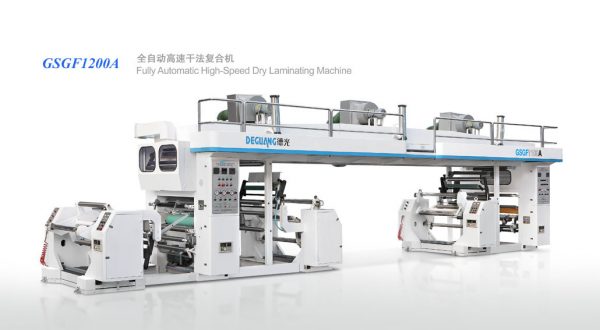

Fully Automatic High-Speed Dry Lamination Machine
Enquiry about GSGF1100.1200A
- Description
Description
Fully Automatic High-Speed Dry Lamination Machine
Technical Parameter:
| Model | GSGF1100A | GSGF1200A |
| Layers of complex | 2 (Layers) | 2 (Layers) |
| Laminating width | 1100mm | 1200mm |
| Loading material’s diameter | 600mm | 600mm |
| Adjustable range of laminating linear speed | 50-120m/min | 50-120m/min |
| Max. Adjustable temperature of dry oven | 80°C | 80°C |
| Max. Adjustable temperature of heat beat | 70°C – 90°C | 70°C – 90°C |
| Tension ratio | 1/1000 | 1/1000 |
| Total Power | 71kw | 75kw |
| Weigh | 9400kg | 10000kg |
| Overall Dimension (L x W x H) | 11500 x 2800 x 3200mm | 11500 x 2900 x 3200mm |
