ZMC-850-S2B (H)

Description

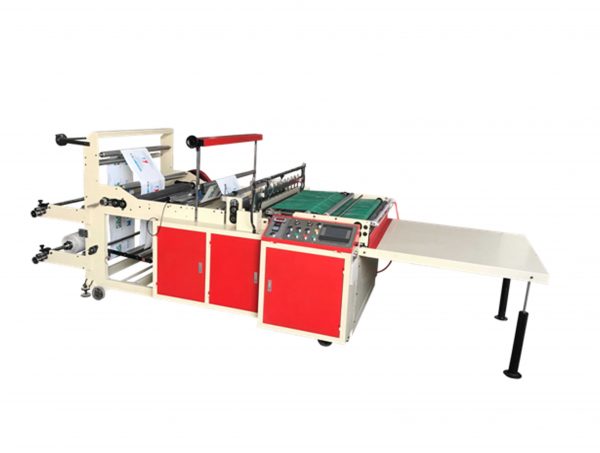

Side Seal BOPP Bag Making Machine

Usage and features:
This bag making machine is suitable for side sealing bag from tube film or sheet folded film .according to set a number of each volume, auto stop and running after given pause time, the machine operation is very easy .customer can improve production efficiency, and it is a good choice for reducing the labor cost.

Standard Accessories
Side center sleeter (2) Out lip flap 3″ with Tape (3) Double in side flap 3″ (3) Center cutter (4) Single sealing Dai BOPP (5) Double film stand with Manual Shaft 32mm (6) 1.5kw Servo Motor.

Optional Attachment
Hole punch 6mm x 75mm depth

Main Technical Parameters:

Model                                                                ZMC-850-S2B

Producing length                                                 100-700mm

Producing width                                                  300-800mm

Max. Producing speed                                         50p/min or 180p/min

Total power                                                          5.5Kw

Film of Thickness                                               0.03-0.08mm

Nature of film                                                     HDPE, LDPE, CPP, BOPP, PVC,

Max. Unwinding dia                                           600mm

Weight                                                                 750Kgs

Overall size L x W x H                                       427 x 157 x 147cm
