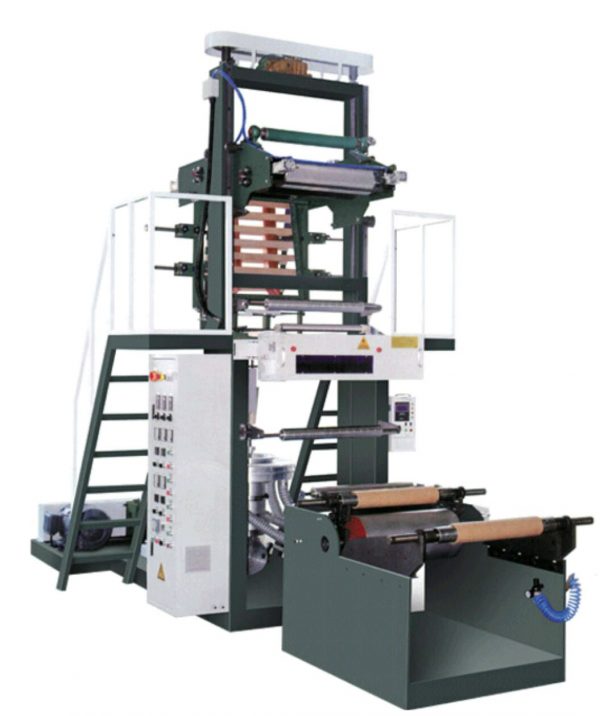

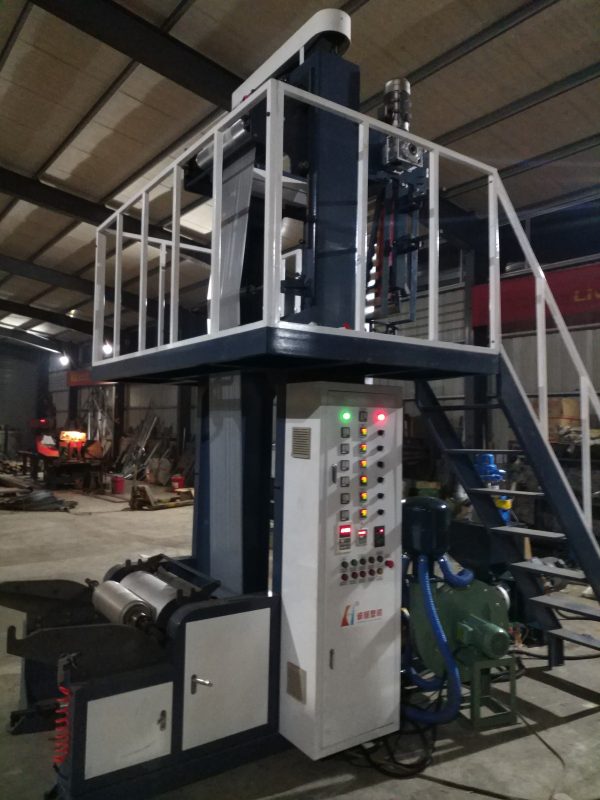

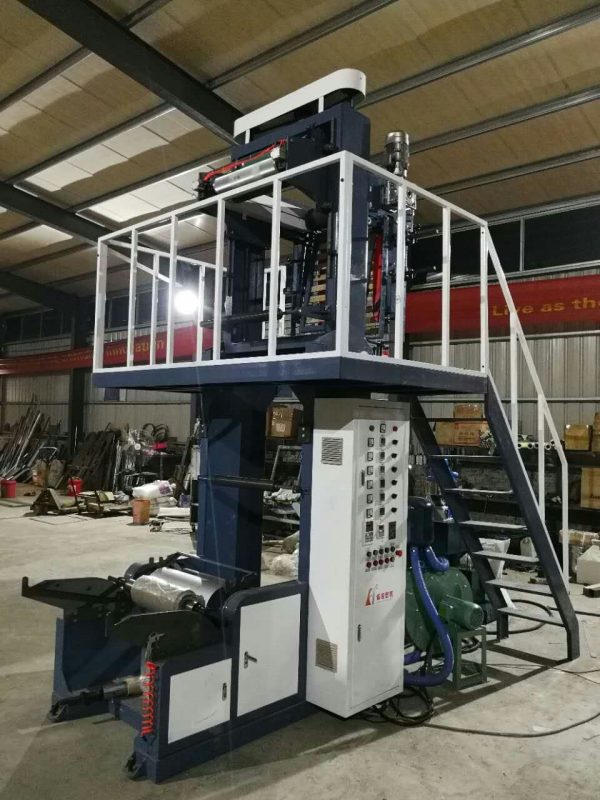

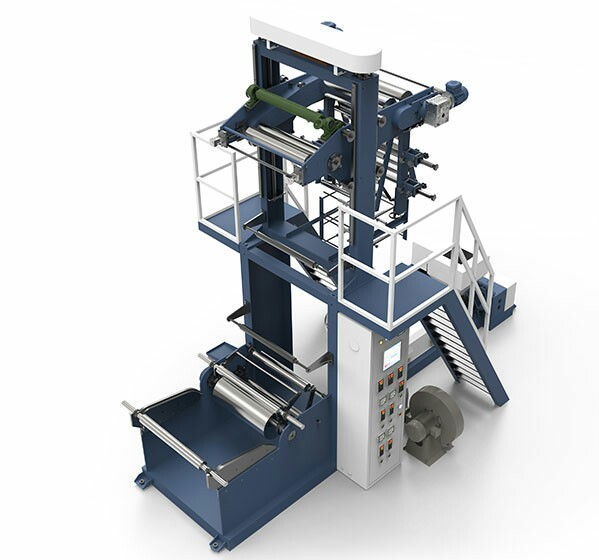

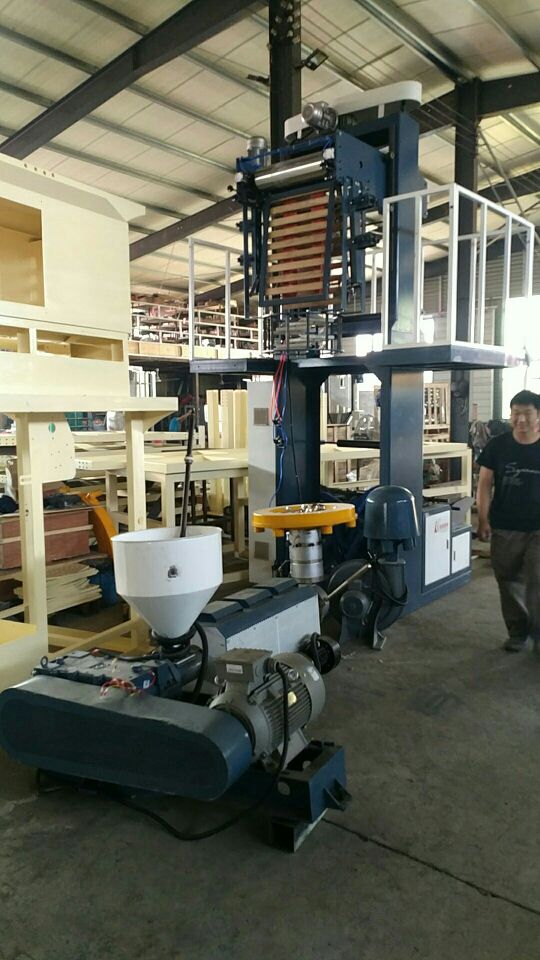

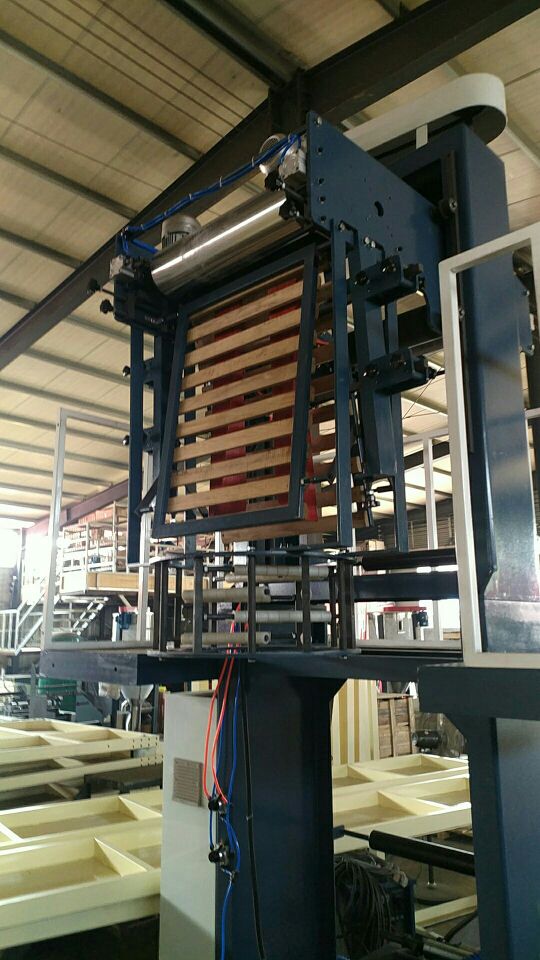

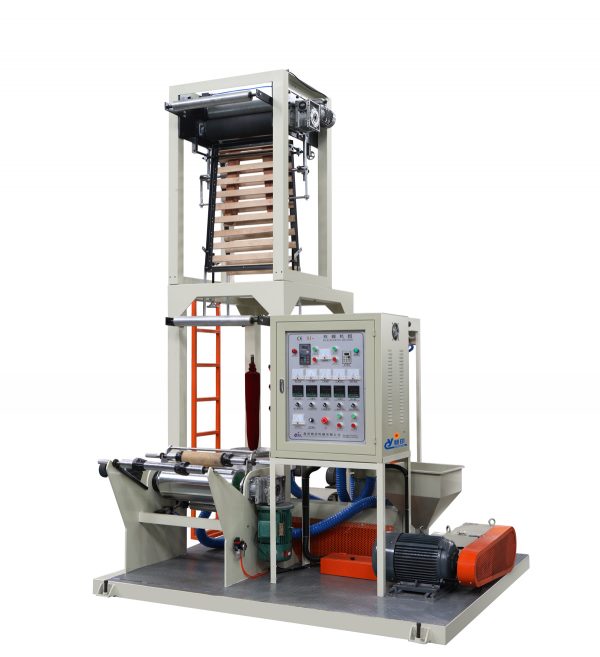

ZMC-CHSJ-ME series Film blowing machine

  • Description


ZMC-CHSJ-ME series Film blowing machine

Model M-40/500   M-45/600
Film width T-shirt bag 150-300mm 150-400mm
Flat bag 100-450mm 150-550mm
Film thickness 0.006-0.10mm 0.006-0.10mm
max output 30g/h 35kg/h
According to different width, thickness of film, die size and raw material characteristics to change
Raw material LDPE/LLDPE/HDPE
Diameter of screw Φ40,30/1 Φ45,30/1
SACM 645 ,bimetallic ,five years guarantee
Main motor □7.5kw □11kw
100% Original three-phase variable frequency motor  Equipped with inverter control
Take up roller(mm) 500mm 600mm
Weight 1300kg 1400kg
Machine size 2.2×1.4×2.2 2.2×1.4×2.2

Note: the above specifications, dimensions & design characteristics are subject to change without notice

Optional device:

Automatic Hopper Loader

Film Surface Treater

Rotary Die

Oscillating Take up Unit


Heat Slitting Device

EPC(Edge Position Control)

Electronic Tension Control

Manual mechanics screen changer
