ZMC-SCR-1-CH

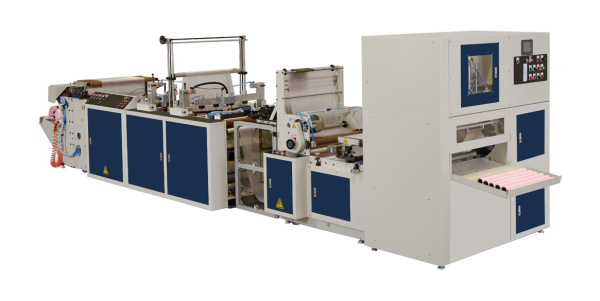

Single line automatic rolling bag making machine(with core)
Enquiry about ZMC-SCR-1-CH
- Description
Description
Single line automatic rolling bag making machine(with core)
| MODEL | SBCR-750-OB |
| Bag Length | 200 – 1500 mm |
| Bag Width | 300 – 750 mm |
| Film Thickness | 0.010 – 0.060 mm |
| Production Speed | 100 meter / min / line(max) |
| Finished Roll Size | Ø180 x 750 mm (max) |
| Upload Film Roll Siza | Ø900 x 750 mm (max) |
| Core Size Diameter | Ø25 – 27 mm,thickness 3 mm (minimum) |
| Power | 220V,3Phases,50/60HZ,12KVA |
| Heater | 2.5KW |
| Dimension L x W x H | 7800x1850x1920mm |
| Packing L x W x H | machine:3640x2290x1460mm rewinder:2420x2290x1700mm |
| Required Air Compressor | 5HP (not included) |
| Weight | 4300kg (net) / 4500kg (gross) |
* The specification is subject to be changed for an improvement without notice.
