ZMC-SR-1-CH

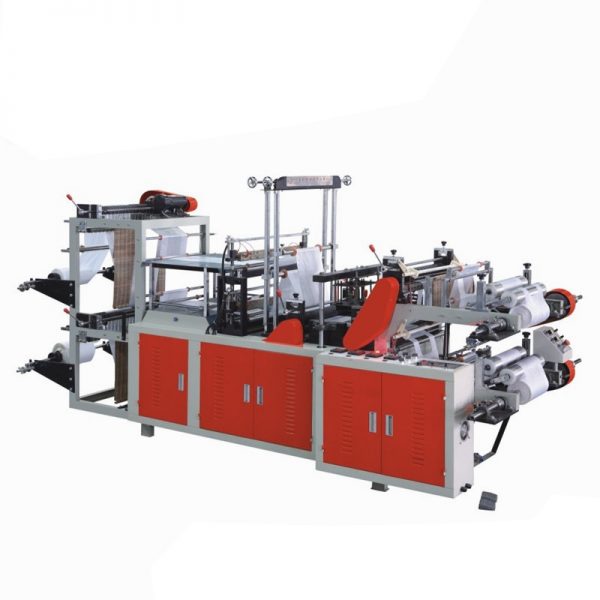

Single line automatic rolling bag making machine (coreless)

  • Description

Description

Single line automatic rolling bag making machine (coreless)

Features

  • Computer control over the entire process
  • From film roll to finished bag in one process flow
  • Automatically stop when to get bag jam or film broke
  • Automatically stop when color scanning misses
  • Servo motor is driven, easy adjustment for bag length and production speed
  • Automatic film feeding, coordination free from tension adjustment
  • Automatically reel changing without

Specifications

MODEL SMCR-1000
POWER 220 V 3 Phases, 50/60 Hz 12 kV
DRIVING MOTOR 1 HP x 3, 2 HP x 1, 1/2 HP x 1
HEATER 2.3 kW
BAG LENGTH 200 – 1300 mm
BAG WIDTH 300 – 950 mm
BAG THICKNESS 10 – 30 µ
SPEED 60 – 100 meter/min
MAX. PRODUCTION DIA Ø150 mm
PRODUCTION WIDTH 100 – 300 mm
DIMENSIONS L x W x H 621 x 158 x 204 cm
MACHINE WEIGHT 2200 kgs
PACKING LxWxH Gusseting: 134 x 176 x 209 cm
Main Machine: 294 x 176 x 126 cm
Rewinder : 161 x 158 x 163 cm
GROSS WEIGHT 2500kgs
AIR COMPRESSOR 5 HP (Not Included)

* The specification is subject to be changed for an improvement without notice.
