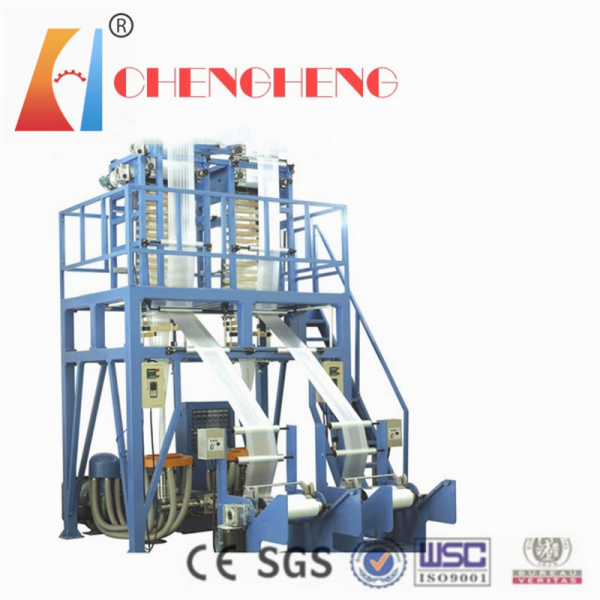

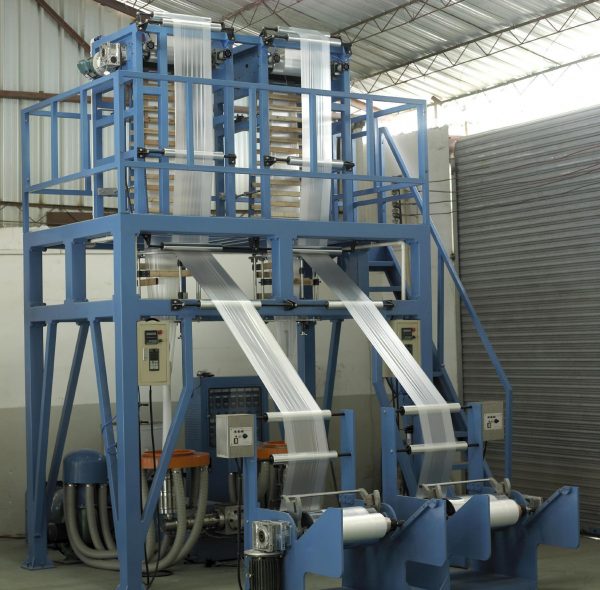

ZMC-CHSJ-MH2-ABA  Double head ABA Blown machine

  • Description


ZMC-CHSJ-MH2-ABA  Double head ABA Blown machine

Model □W-55-50/700   □W-65-55/900
Film width (mm) □200-600mm   □250-800mm
Film thickness 0.006-0.15mm
max output


□125kg/h □150kg/h
According to different width, thickness of film, die size and raw material characteristics to change
suitable material HDPE/LDPE/LDPE
Diameter of screw □Φ55/50,30/1  □Φ65/55,30/1

SACM 645 ,bimetallic ,five years guarantee

Main motor □11kw    □15kw    □30kw   □37kw
100% Original three-phase variable frequency motor  Equipped with inverter control
Take up roller(mm) □700mm  □900mm   □1200mm   □1400mm
Weight □3800kg  □4200kg
Overall dimension(L*W*H)m □6.5*2.7*5  □6.5*3*5.8

Note: the above specifications, dimensions & design characteristics are subject to change without notice

Optional device:

Automatic Hopper Loader

Film Surface Treater

Rotary Die

Oscillating Take Up Unit

Two Stations Surface Winder


Heat Slitting Device

Gravimetric Dosing Unit

IBC (Internal Bubble Cooling Computer Control System)

EPC (Edge Position Control)

Electronic Tension Control

Manual mechanics screen changer

Edge material recycling machine
