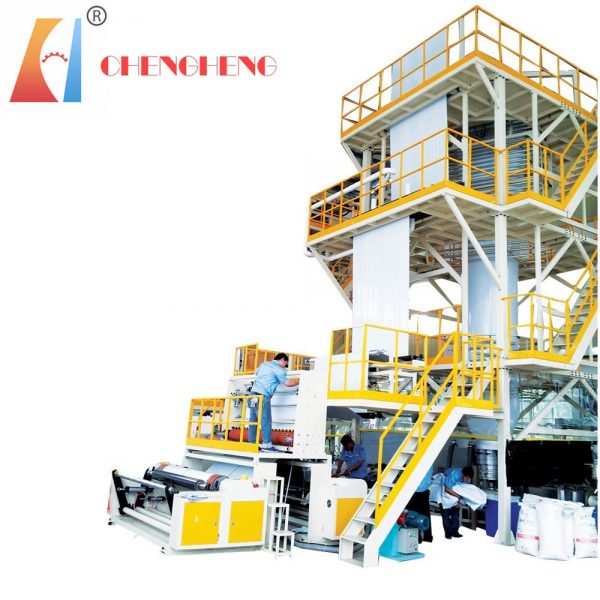

ZMC-CHSJ-ML-3 ABC film blowing machine

  • Description


ZMC-CHSJ-ML-3 ABC film blowing machine

Model ML-ABC/45-50-/45/1200 ML-ABC/50-65-50/1400 ML-ABC/55-65-55/1600 ML-ABC/65-75-65/1800
Film width 250-1050mm 300-1200mm 500-1400mm 500-1600mm
Film thickness 0.006-0.15mm 0.006-0.15mm 0.006-0.15mm 0.006-0.15mm
 max output 155kg/h 185kg/h  215kg/h  280kg/h
  According to different width, thickness of film, die size and raw material characteristics to change
Diameter of screw Φ45/50/45,30/1 Φ50/65/50,30/1 Φ55/65/55,30/1 Φ65/75/65,30/1
SACM 645 ,bimetallic ,five years guarantee
Main motor 15kw*2 ,18.5kw 22kw*2 ,37kw 30kw*2 ,37kw 37kw*2,45kw
100% Original three-phase variable frequency motor

Equipped with inverter control

Take up roller(mm) 1200mm 1400mm 1600mm 1800mm
Weight 4800kg 7200kg 8900kg 10200kg
Machine size 6.5*2.7*6 6.5*3*7 6.5*3.8*8.5 6.8*4*6.9

Note: the above specifications, dimensions & design characteristics are subject to change without notice

Optional device:

Automatic Hopper Loader

Film Surface Treater

Rotary Die

Oscillating Take up Unit

Two Stations Surface Winder


Heat Slitting Device

Gravimetric Dosing Unit

IBC (Internal Bubble Cooling Computer Control System)

EPC (Edge Position Control)

Electronic Tension Control

Manual mechanics screen changer

Edge material recycling machine
