ZMC-SS-CH
The series of computerized heat-cutting machine belongs to eagerly heat-cutting side sealing bag making equipment, general together worked with film folding machine, suitable for BOPP, OPP, PE, PP for a variety of plastic heat sealing and cutting the bag.
Enquiry about ZMC-SS-CH
- Description
Description
Mechanical overview:

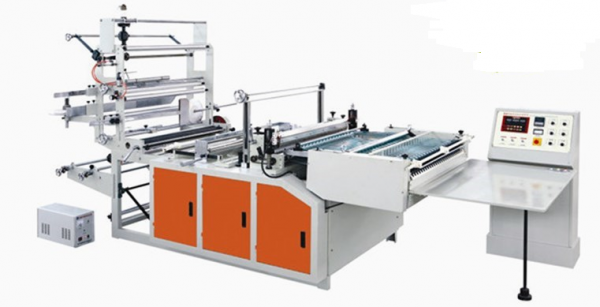

1- The series of computerized heat-cutting machine is belong to eagerly heat-cutting side sealing bag making equipment, general together worked with film folding machine, suitable for BOPP, OPP, PE, PP for a variety of plastic heat sealing and cutting the bag. The products are widely used in clothing, stationery, hardware products such as packaging bags
2- It has single chip computer master control, the hybrid stepper motor fixed the length, with automatic counting, advanced alarm, to the number of down, a number of display, high parking, and other functions. Production size accuracy, sealing and cutting firm, beautiful and so on.
3- This model belongs to a multifunctional machine, it has a feed tube opening, flanging, stickers, inserted M bottom, water cooling knife, etc..
Technical parameters：
| Model
|
ZMC-SS-CH | ||||
| 700 | 1000 | ||||
|
Max machine speed |
150PC/min | 150PC/min | |||
| effective width of bag | 700mm | 1000mm | |||
| Application materials | PP、PE、OPP、BOPP | PP、PE、OPP、BOPP | |||
| the effective length of bag making | 65-500 | 300-600mm | |||
| the effective thickness of heat sealing | 0.02～0.1mm | 0.02～0.1mm | |||
| overall dimension | L | 4500mm | 4500mm | ||
| W | 1400mm | 1700mm | |||
| H | 2000mm | 2000mm | |||
| Working voltage | Three-phase AC380V 50Hz | Three-phase AC380V 50Hz | |||
| Total power | 5KW | 5KW | |||
| Machine weight | 1.6t | 1.9t | |||
* The specification is subject to be changed for an improvement without notice.
