ZMC-CHSJ-MH4 Four head blown machine

  • Description

Description

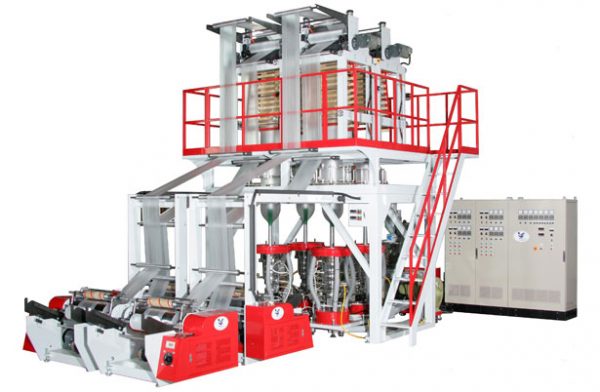

ZMC-CHSJ-MH4 Four head blown machine

Model □X-65/600    □X-75/700
Film width T-shirt bag □200-350mm  □250-420mm
Flat bag □200-500mm   □250-600mm
Film thickness 0.006-0.08mm
 max output  □85kg/h  □115kg/h
According to different width, thickness of film, die size and raw material characteristics to change
Raw material HDPE/LDPE/LLDPE
Diameter of screw □Φ65,30/1  □Φ75,30/1

SACM 645 ,bimetallic ,five years guarantee

Main motor □37kw □45kw
100% Original three-phase variable frequency motor  Equipped with inverter control
Take up roller(mm) □600mm  □700mm
Weight   □3500kg  □4200kg
Machine size   □6.5*3.2*4.2   □6.8*3.5*4.5

Optional device:

Automatic Hopper Loader

Film Surface Treater

Rotary Die

Oscillating Take up Unit

Two Stations Surface Winder

Chiller

Heat Slitting Device

Gravimetric Dosing Unit

IBC (Internal Bubble Cooling Computer Control System)

EPC (Edge Position Control)

Electronic Tension Control

Manual mechanics screen changer

Edge material recycling machine
